Sprites - Blue Starters - Blue Jets - Gigantic Jets - Elves - Halos - Trolls
Taken by Frankie Lucena on October 26, 2015 @ Cabo Rojo,Puerto Rico
Click photo for larger image
  Camera Used: Canon Canon EOS REBEL T2i
Exposure Time: 15/1
Aperture: f/3.5
ISO: 800
Date Taken: 2015:08:30 01:12:44

More images
Details:

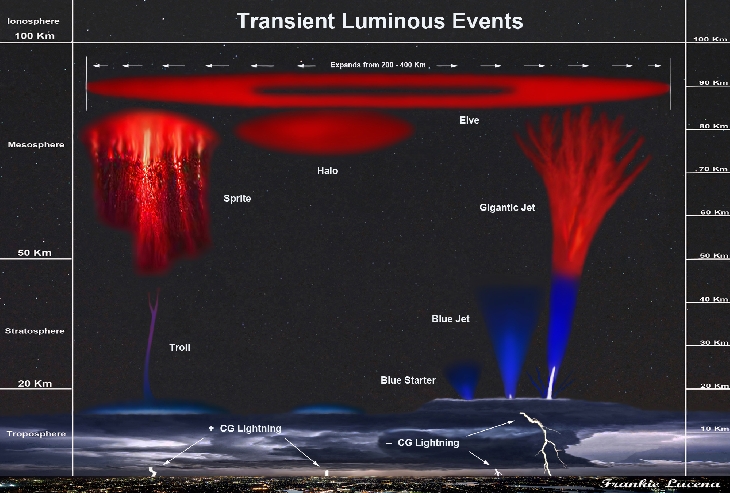

Sprites: They initiate between 65 and 85 km in altitude and are typically triggered by a positive cloud-to-ground lightning strike. The streamers first grow downward and then upwards before disappearing. They are mainly red in color but as they grow downward they will transition to purple and then to blue.

Halos: They are typically triggered by a positive cloud-to-ground lightning strike like sprites and will sometimes appear together with sprites. They initiate at about 80-85 KM and will typically look like a red oval shaped cloud.

Trolls: They occur during long-lasting sprite events with ongoing lightning activity in the cloud and with long lasting +CG currents to ground. Its hard to link them to a particular cloud-to-ground lightning strike. They are mainly purple in color like the tendrils of a sprite and will transition to blue towards the bottom.

Elves: They are an electromagnetic pulse that originates at the same time as the cloud-to-ground lightning strike. They project a ring of red light as electrons at the base of the ionosphere excite nitrogen molecules. They typically appear at about 90 Km in altitude and are considered the most common type of Transient Luminous Event.

Blue Starters: A blue starter is an electric streamer discharge that initiates under the screening layer at the cloud top. They start out as a white channel rising from the cloud top that quickly transitions to a blue fan shaped plume as it travels upwards to about 26 Km in altitude. The white channel is rarely seen because they are typically obscured by the cloud.

Blue Jets: They are often linked to charge removal by negative cloud-to-ground lightning. They initiate under the screening layer at the cloud top and they start out as a bright white channel rising from the top of the storm cloud that quickly transitions to a blue coned shaped plume as it travels upwards to about 40 Km in altitude. The white channel is rarely seen because they are often obscured by the cloud.

Gigantic Jets: Unlike Blue Jets and Starters, a Gigantic Jet initiates in the middle of the storm cloud. They start out as a bright white channel rising from the cloud top that quickly transitions to blue and then to red as it climbs as high as 80-90 Km in altitude. They are usually preceded by multiple negative cloud-to-ground lightning and will typically appear during a null in the lightning activity.
Comments
  You must be logged in to comment.
I was able to put together this TLE chart thanx to the help of Oscar van der Velde. He also helped me with the description of each of the events.
Posted by supernova 2015-10-27 21:51:41
This is a great example and explanations!
Posted by HP1954 2015-10-30 20:50:11
45 thumbs up
