Polar Mesospheric Summer Echo
Taken by Rob Stammes on May 20, 2019 @ Polarlightcenter Lofoten Norway.
Click photo for larger image
  Camera Used: Unavailable Unavailable
Exposure Time: Unavailable
Aperture: Unavailable
ISO: Unavailable
Date Taken: Unavailable

More images
Details:

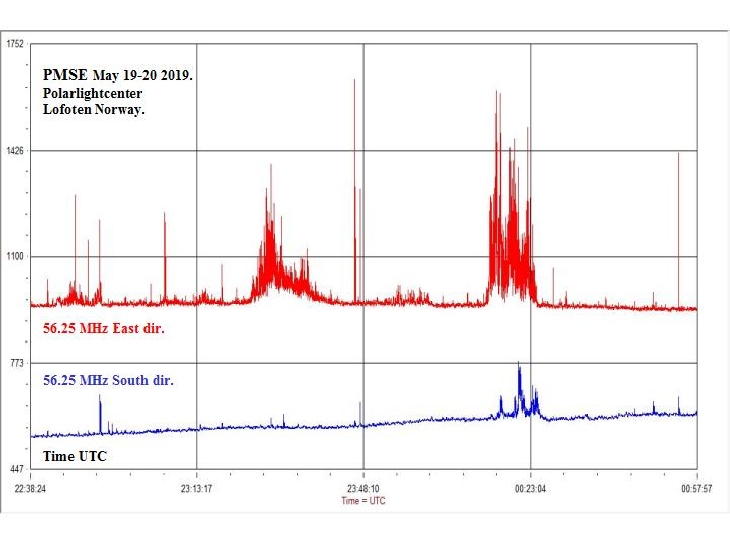

Last night,May 19-20 2019 I had the first radio reflection signals from Polar Mesospheric Clouds this season on my instruments.
VHF signals from Eastern Europe in a recognizable structure and very strong,sometimes related with visible NLC,s or Noctilucent Clouds.Still waiting for the first pictures from NLC.s on the Spaceweather gallery.
Comments
  You must be logged in to comment.
Which type of value on vertical axis ? Thanks for information.
Posted by astrocb 2019-05-20 07:49:19
How do you distinguish between PSME and sporadic E (Es)?
Posted by W9IP 2019-05-23 06:25:29
Vertical is only the ADC voltage input after amplifying the signal,the AGC output of the receiver.

Youre right,sometimes Im not sure and then I dont post the data.
Sporadic E is almost not around or after midnight and when it is magnetically quiet it is not polar Es.
There is also a different in signals on my instruments.
In addition,Iam always happy with NLC pictures from the same moment.

Thank you both. Rob.
Posted by polarlight 2019-05-27 15:18:34
